Description

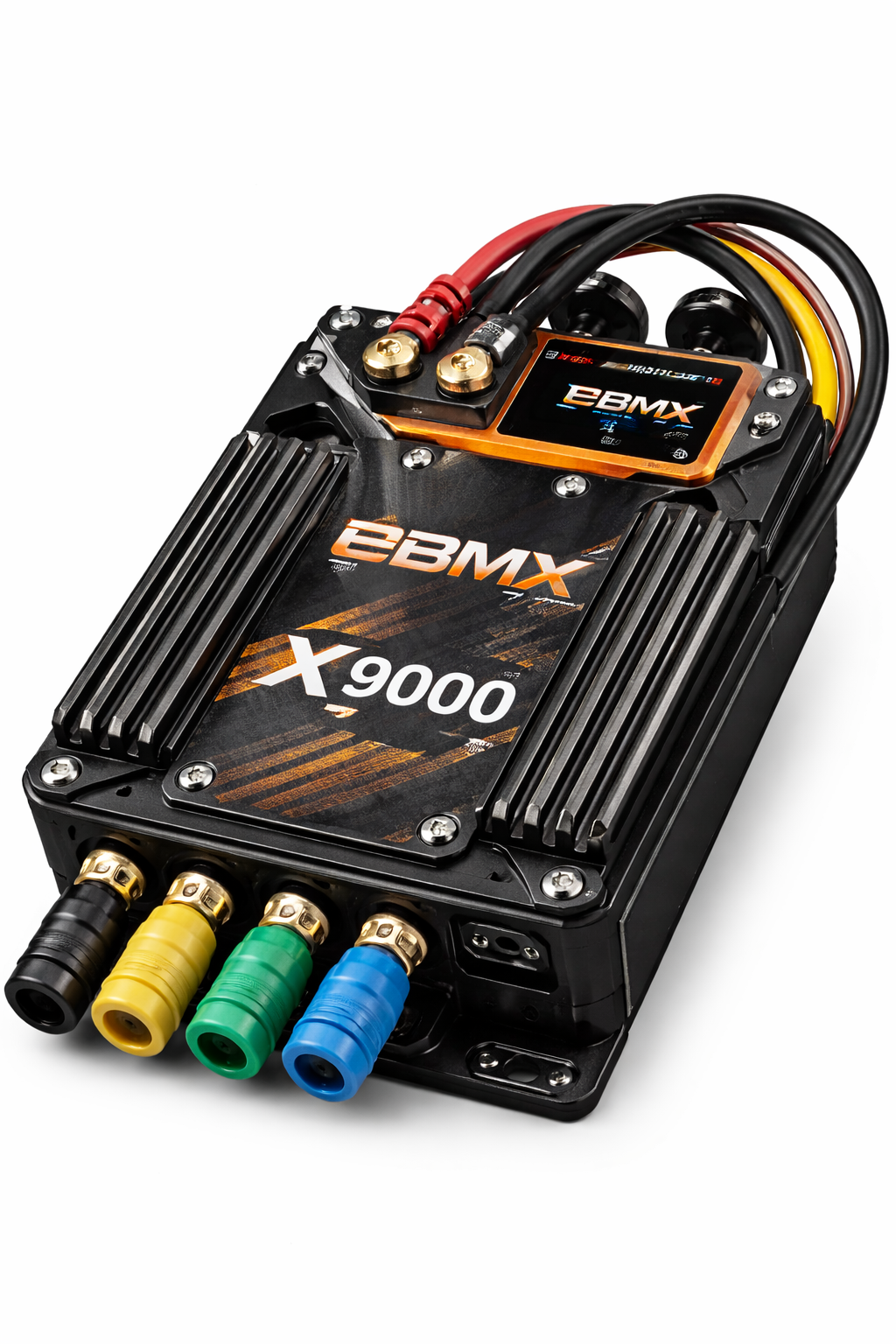

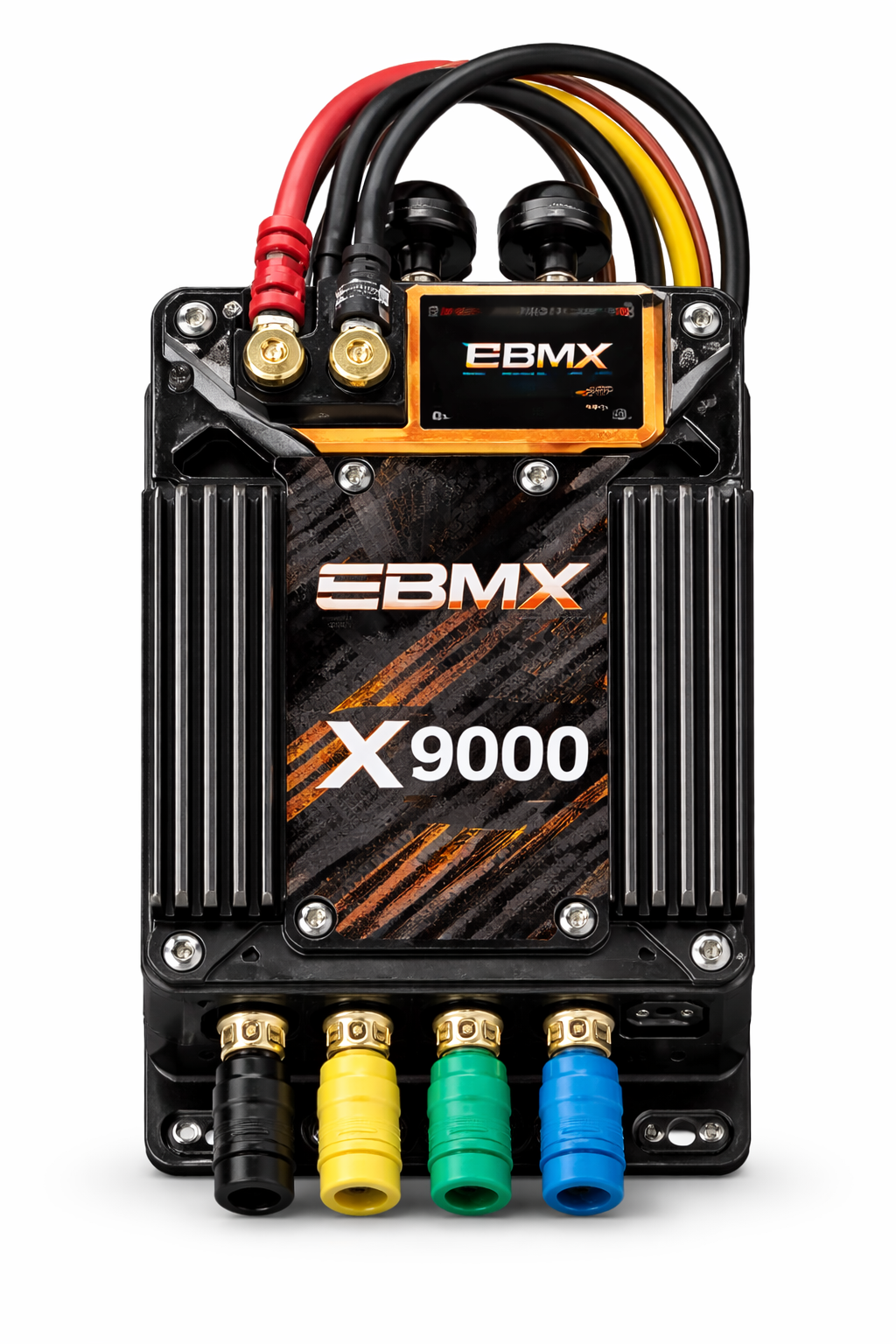

EBMX X-9000 V3 Controller – Maximum Control, Power & Tuning

EBMX X-9000 V3 Controller is a high-performance upgrade for compatible Talaria and Sur-Ron builds, designed for riders who want significantly greater control over power delivery, throttle response, acceleration, and overall performance.

The X-9000 V3 supports plug-and-play configurations for Sur-Ron Light Bee and Talaria MX3, MX4 and MX5, with additional supported platforms and motor configurations available depending on the selected fit kit.

With a rated output of up to 50kW, 1000A continuous phase current, and 1600A burst phase current, the X-9000 V3 is built for serious performance-focused builds. Actual output depends on the battery, motor, wiring, configuration and other components used with the controller.

Why Upgrade to the EBMX X-9000 V3?

The X-9000 V3 gives you much greater control over how your bike delivers power. Its EBMX VESC-based firmware uses field-oriented control (FOC) to provide smooth throttle response, precise motor control and efficient power delivery.

The controller also provides multiple configurable power levels, allowing riders to create different performance profiles for different riding conditions.

Key Features

• EBMX X-9000 V3 controller
• Up to 50kW rated power
• 1000A continuous phase current
• 1600A burst phase current
• 40–120V input voltage range
• 48–110V working voltage range
• Field-Oriented Control (FOC)
• Advanced throttle tuning
• Adjustable regenerative braking
• Six customizable power levels
• Race and Street modes
• Integrated IMU for programmable wheel-lift functions
• Bluetooth connectivity
• EBMX X-Series App compatibility
• OTA firmware updates
• CNC-machined alloy housing
• IP67-rated construction
• Designed for demanding performance applications

What Bikes Does the X-9000 V3 Support?

The X-9000 V3 has plug-and-play support for several popular electric bike platforms, including:

• Sur-Ron Light Bee
• Sur-Ron Ultra Bee
• Talaria MX3
• Talaria MX4
• Talaria MX5
• Talaria XXX
• E Ride Pro platforms
• Re-rode R1

Compatibility depends on the correct fit kit and motor configuration, so always select the appropriate configuration for your bike before ordering.

What Motors Can It Support?

The X-9000 V3 supports a wide range of OEM and aftermarket motors, including compatible Sur-Ron, Talaria, EBMX, KO, QS and Sotion motor configurations.

It supports both Hall and encoder-based motor configurations, providing flexibility for standard and heavily upgraded builds.

Can I Tune the Controller?

Yes. One of the major advantages of the X-9000 V3 is its extensive tuning capability.

Through the EBMX X-Series App, riders can configure performance characteristics such as:

• Throttle response
• Power levels
• Regenerative braking
• Motor settings
• Battery profiles
• Riding modes

This allows the controller to be configured around the battery, motor and riding style rather than using a single fixed factory configuration.

Is the X-9000 V3 Suitable for a High-Performance Build?

Yes. The X-9000 V3 is designed specifically for performance-focused builds where the rider wants considerably more tuning capability and power potential than a standard controller provides.

It can be paired with compatible aftermarket batteries and motors to create a substantially upgraded setup. However, the controller does not automatically create 50kW of power—the battery, motor, wiring and configuration must all be capable of supporting the requested output.

What Is Included?

The standard X-9000 V3 controller kit includes:

• X-9000 V3 Controller
• Black air-cooled heatsink
• SW102T display
• Regen thumb throttle
• 2-to-1 CANBUS harness
• Bluetooth module
• Required hardware

The exact fit kit and harness configuration can vary by bike, so check the selected configuration before ordering.

Installation & Compatibility

The X-9000 V3 is available with plug-and-play mounting and harness solutions for supported platforms. EBMX also provides dedicated mounting solutions for applications including the Sur-Ron Light Bee and Talaria MX3/MX4/MX5.

Because this is a high-power electrical component, installation should be performed carefully and the controller must be configured correctly for the battery and motor being used.

Important Before Ordering

Please confirm:

• Your exact bike model
• Motor configuration
• Battery voltage
• Battery current capability
• Correct X-9000 fit kit
• Required harness configuration

Using an incorrect configuration or unsuitable battery/motor combination can result in poor performance or component damage.

Upgrade Your Setup

If you’re building a high-performance Sur-Ron Light Bee or Talaria, the EBMX X-9000 V3 gives you the power, control and tuning flexibility to take your setup considerably further.

Upgrade your controller, fine-tune your power delivery, and build the performance setup that matches the way you ride.
